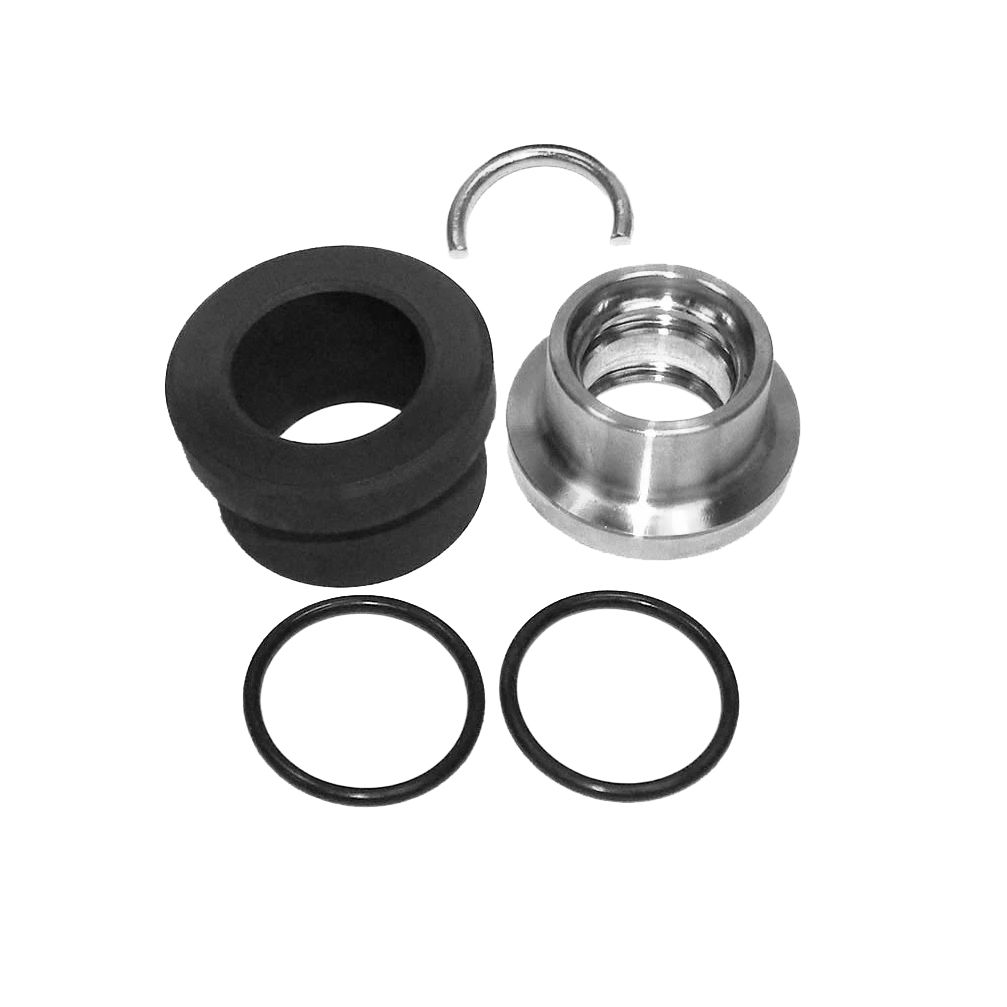

Sea-Doo Carbon Seal Kit

Carbon Seal Kit Fitment Guide

Please PLEASE read the description before ordering!

These are all high-quality aftermarket replacement parts.

These kits are not interchangeable. Always verify the support ring height before ordering.

These kits are **not** interchangeable. Always verify the support ring height and bellow before ordering.

---

(2-Stroke)

• 580cc (1996) GTS, SP, SPI
• 720cc (1995–2005) GTI, GTI LE, GTS, GS, GSI, HX, SP, SPX, Speedster, Sportster, Challenger
• 800cc (1996–2005) GTX, GTX RFI, GSX, SPX, XP, GTI RFI, GTI LE RFI, 3D RFI, Challenger, Challenger 1800
• 951cc (1998–2007) GTX, GTX DI, GTX LTD, GSX LTD, RX, RX DI, XP, XP DI, XP LTD, LRV, LRV DI, 3D DI, Sportster LE / LE DI
• Carbon Ring: OD 40.50mm (bellow clamp), ID 27.15mm, Height 27.25mm
• Support Ring: OD 46.00mm, ID 22.35mm, Height 21.65mm
• Bellow: 003-104 / 003-104-01 (sold separately)

OEM#: 2720001-77

• Most 2002–2015 NA models (GTI 130, GTS 130, early GTX, Wake)
• Does **not** fit 2011–2015 GTX 155 (use 003-110-02K)
• Carbon Ring: OD 50.50mm (bellow clamp), ID 30.75mm, Height 26.10mm
• Support Ring: OD 50mm, ID 27mm, Height 18.60mm
• Bellow: 003-104 (sold separately)

OEM: 2710014-20

• 155HP, 215HP, 230HP, 255HP, 260HP, 300HP (2004–2017) GTX, GTR, RXP, RXP-X, RXT, RXT-X, Wake Pro
• Carbon Ring: OD 59.60mm (bellow clamp), OD 64.50mm largest, ID 40.00mm, Height 26.00mm
• Support Ring: OD 59.15mm, ID 29mm, Height 18.55mm
• Bellow: 003-101 / 003-101-01 (sold separately)

OEM: 2955011-97

• 130HP / 155HP / 170HP (2016+ Naturally Aspirated) GTI, GTS, GTX, Wake, Fish Pro, Explorer Pro, Cruise, Sport, Base
• Includes: GTI 130/155 (2016–2019), GTI SE/STD 130/155/170 (2016–2026+), GTX 170 / Fish Pro (2020–2026), Wake 170 (2020–2026), Fish Pro Scout/Sport/Trophy (2022–2026), Explorer Pro 170 (2023–2026), Cruise 100/130/170 (2022–2027), Sport Compact 170 (2022–2027), Base / Base Compact (2022–2027)
• Carbon Ring: OD 59.6mm (bellow clamp), ID 40mm, Height 26mm
• Support Ring: OD 66.20mm, ID 27mm, Height 18.40mm
• Bellow: 003-101-01 (sold separately)

OEM: 2955011-99

• 300HP (2018–2020) RXP-X / RXP-XRS
• Carbon Ring: OD 59.60mm (bellow clamp), OD 64.50mm largest, ID 40mm, Height 26mm
• Support Ring: OD 65.90mm, ID 29.40mm, Height 23.50mm
• Bellow: 003-101 (sold separately)

OEM: 2955011-98

• Mainly 2020–2021: GTR 230, GTX 230/300, RXT-X 300, Wake Pro 230, some GTI rental
• Carbon Ring: OD 59.60mm (bellow clamp), ID 40mm, Height 26mm
• Support Ring: OD 65.90mm, ID 29.40mm, Height 18.50mm
• Bellow: 003-101-01 (sold separately)

OEM: 2955012-09

• Spark 60 / 90 / TRIXX (2021–2026+)
• Bellow: **003-105** (sold separately)

OEM: 2955012-06

• 300HP (2021–2023) RXP-X / RXP-XRS
• Carbon Ring: OD 59.60mm (bellow clamp), ID 40mm, Height 26mm
• Support Ring: OD 66.30mm, ID 32.25mm, Height 24.50mm
• Bellow: 003-101 (sold separately)
